Expert

Scripting API

Runtime scripting for spreadsheets, scenegraph motion, robots, and UI overlays

Overview

confBuild scripts run inside the live editor. You can read and write spreadsheet data, manipulate THREE.js objects directly, create reusable scene animations, control URDF robots, and even mount custom UI on top of the editor.

Spreadsheet Logic

Use ActiveWorkbook to read parameters, write formulas, loop through sheets, and trigger controlled model rebuilds.

Live Scenegraph Control

Use API.getSceneObject(), API.updateSceneObject(), and API.renderScene() for direct scene changes without rebuilding the spreadsheet model.

Animations and Motion

Create named scene animations, scrub their progress, or drive machines and URDF robots from JavaScript.

Custom UI and Debugging

Mount HTML, jQuery UI, or React panels in the editor and inspect logs and runtime errors directly from the script API.

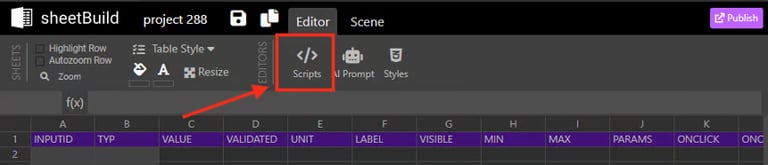

Quick Start

The runtime is organized around three main entry points.

ActiveWorkbook Spreadsheet reads, writes, ranges, and sheet helpers

API UI updates, scenegraph helpers, animations, robots, script UI, and debugging

scene Scene-level helpers such as connector creation and connector updates

Refresh Rules

Call await API.updateUI() after changing spreadsheet cells with ActiveWorkbook.
Call API.renderScene() after direct scenegraph edits when you did not rebuild the spreadsheet model.
Cell addresses are 0-based: { sheet: 0, row: 0, col: 0 } is the first cell.
Use double quotes in script strings for the best editor compatibility.

Minimal Example

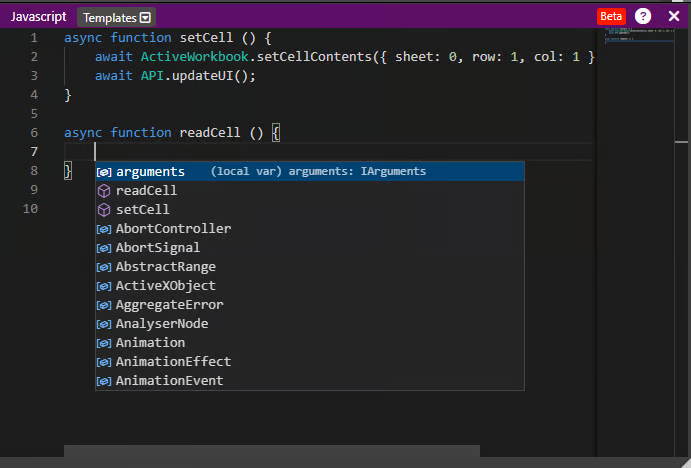

async function projectLoaded(project) {
  const width = await ActiveWorkbook.getCellSerialized({ sheet: 0, row: 0, col: 1 });
  console.log("Project loaded:", project?.name, "current width:", width);

  await ActiveWorkbook.setCellContents({ sheet: 0, row: 4, col: 1 }, "Ready");
  await API.updateUI();
}

Spreadsheet Operations

Use ActiveWorkbook for all cell-based project logic.

ActiveWorkbook.getCellSerialized(address) Read the current serialized cell value

ActiveWorkbook.getCellFormula(address) Read the cell formula

ActiveWorkbook.setCellContents(address, value) Write a value or formula to a cell

ActiveWorkbook.getRangeValues(range) Read a block of cell values

ActiveWorkbook.getRangeFormulas(range) Read formulas from a range

ActiveWorkbook.getSheetDimensions(sheetId) Return the row and column count for a sheet

ActiveWorkbook.simpleCellAddressFromString("B5", 0) Convert a spreadsheet address string to a 0-based address object

ActiveWorkbook.simpleCellAddressToString(address, 0) Convert an address object back into spreadsheet notation

Example: Read, Process, and Write Cells

async function processRows() {
  const dims = await ActiveWorkbook.getSheetDimensions(0);

  for (let row = 1; row < dims.rows; row++) {
    const input = await ActiveWorkbook.getCellSerialized({ sheet: 0, row, col: 0 });
    if (!input) {
      continue;
    }

    const result = Number(input) * 2;
    await ActiveWorkbook.setCellContents({ sheet: 0, row, col: 1 }, result);
  }

  await API.updateUI();
}

Live Scenegraph Helpers

Use the runtime API when you want immediate transforms, visibility changes, or metadata updates without regenerating geometry from the sheet.

API.getSelectedSceneObject() Return the currently selected THREE.js object

API.getSceneObject(target) Resolve an object by outputid, scene path, name, or object reference

API.getSceneObjectState(target) Read a plain snapshot of position, rotation, scale, visibility, and parent info

API.updateSceneObject(target, updates) Apply absolute or relative position, rotation, scale, visibility, name, or userData changes

API.renderScene(force?) Trigger a viewport render after direct scenegraph edits

Supported `updateSceneObject()` Fields

You can pass position, translate, rotation, rotate, scale, scaleBy, visible, name, userData, angleUnit, and render.

Example: Nudge the Selected Part

async function nudgeSelection() {
  const selected = API.getSelectedSceneObject();
  const target =
    selected?.userData?.outputid ||
    selected?.userData?.path ||
    selected?.name;

  if (!target) {
    console.warn("No stable scene target was found");
    return;
  }

  await API.updateSceneObject(target, {
    translate: { x: 25, z: 10 },
    rotate: { z: 15 },
    angleUnit: "degrees",
    userData: { lastAction: "nudgeSelection" }
  });

  API.renderScene();
}

Scene Animations

Scene animations run on the live THREE.js scenegraph. They are ideal for machine motions, open-close behavior, travel moves, and repeated visual states.

API.animate(target, config) Create an animation directly from a target and configuration

API.setAnimation(id, config) Create or replace a named animation

API.playAnimation(id?, restart?) Play one animation or all animations

API.pauseAnimation(id?) Pause one animation or all animations

API.stopAnimation(id?, restore?) Stop motion and optionally restore the original transform baseline

API.setAnimationProgress(id, progress) Set progress between 0 and 1

API.setAnimationValue(id, value) Jump to a concrete animation value between from and to

API.getAnimation(id) Read animation state, direction, duration, and current progress

API.listAnimations(id?) List all animations or the matching animation group

Animation Config Reference

Use property as "position", "rotation", or "scale". Set the motion axis with axis and define from, to, durationMs, optional delayMs, loop mode "once", "repeat", or "pingpong", and easing such as "linear", "easeOutQuad", or "easeInOutCubic".

Tip: Use a stable target identifier. Prefer outputid, then scene path, then object name.

Example: Pneumatic Cylinder Stroke

async function ONLOADED() {
  const selected = API.getSelectedSceneObject();
  const target =
    selected?.userData?.outputid ||
    selected?.userData?.path ||
    selected?.name;

  if (!target) {
    console.warn("No target for cylinder animation");
    return;
  }

  await API.setAnimation("pistonRod", {
    target,
    property: "position",
    axis: [0, 0, 1],
    from: 0,
    to: 120,
    durationMs: 900,
    loop: "pingpong",
    easing: "easeInOutCubic",
    autoplay: false,
    restoreOnStop: true
  });

  await API.setAnimationProgress("pistonRod", 0);
}

async function playCylinder() {
  await API.playAnimation("pistonRod", true);
}

async function setCylinderStroke(strokeMm) {
  await API.setAnimationValue("pistonRod", strokeMm);
}

URDF Robots

The scripting API can load URDF robots, inspect their joints, move them by joint values, solve inverse kinematics, and follow tool paths from project scripts.

API.addRobot(urdfUrl, name, options) Load a URDF robot into the current scene

API.listRobots() Return manager-loaded robots and sheet-created robots as plain snapshots

API.getRobot(target) Read robot state by ID or name

API.setActiveRobot(target) Mark one robot as the active robot for follow-up actions

API.getRobotJoints(target) List joints with limits, axis, and current values

API.setRobotJointValue(target, jointName, value, angleUnit) Set one joint immediately

API.setRobotJointValues(target, values, angleUnit) Set multiple joints at once

API.animateRobotJointValues(target, values, durationMs, angleUnit, steps) Animate joints smoothly over time

API.updateRobot(target, updates) Change robot base position, rotation, scale, or visibility

API.getRobotEndEffectorPosition(target) Read the current end effector position

API.solveRobotIK(target, position) Solve inverse kinematics for a target TCP position

API.followRobotPath(target, path) Follow an array of TCP waypoints with optional timing per point

API.homeRobot(target) Reset robot joints to the home pose

API.stopRobotMotion() Stop the current robot motion run

API.removeRobot(target) Remove one robot from the scene

API.clearRobots() Remove all managed robots

Toolhead and TCP Positioning

API.solveRobotIK() currently solves for the end-effector position, not a full orientation target. For precise toolhead orientation, combine TCP target positions with explicit wrist joint values or a follow-up joint pose adjustment.

For process moves, define an approach, work, and retract point and run them as a path rather than jumping straight to the work point.

Example: Run a TCP Path

async function runRobotPath() {
  const robots = API.listRobots();
  const robot = robots[0];

  if (!robot) {
    console.warn("No URDF robot is loaded in this project");
    return;
  }

  const joints = API.getRobotJoints(robot.id);
  console.log("Available joints:", joints.map((joint) => joint.name));

  if (joints.length > 0) {
    await API.animateRobotJointValues(robot.id, {
      [joints[0].name]: 20
    }, 500, "degrees", 24);
  }

  const tcpApproach = { x: 650, y: 0, z: 980, time: 300 };
  const tcpWork = { x: 650, y: 0, z: 900, time: 400 };
  const tcpRetract = { x: 650, y: 0, z: 1020, time: 300 };

  await API.followRobotPath(robot.id, [tcpApproach, tcpWork, tcpRetract]);

  const ee = API.getRobotEndEffectorPosition(robot.id);
  console.log("Final TCP position:", ee);
}

Custom Script UI

Scripts can add lightweight interface layers directly on top of the editor. This is useful for status panels, custom tools, dialogs, and debug helpers.

API.requireLibrary(name) Load supported runtime libraries such as "jquery", "jquery-ui", "react", or "babel"

API.loadExternalScript(url, globalName?) Load any external script and optionally wait for a global export

API.loadExternalStyle(url, id?) Attach an external stylesheet

API.createScriptMountPoint(mountId, options) Create an absolute or fixed-position mount element

API.removeScriptMountPoint(mountId) Remove a specific script UI mount

API.clearScriptUi() Remove every mount point created by the current script

API.createReactRoot(mountId, options) Create a React root after loading React automatically

API.renderReactComponent(mountId, elementFactory, options) Render a React element or component factory into a mount

API.renderReactComponentFromSource(mountId, source, options, componentName) Compile React component source with Babel and render it

API.openJQueryDialog(mountId, html, dialogOptions, mountOptions) Create a jQuery UI dialog from script code

Example: Open a jQuery UI Status Dialog

async function showScriptStatus() {
  await API.openJQueryDialog(
    "script-status",
    "<p>Robot setup complete.</p><p>Ready for path execution.</p>",
    { title: "Script Status", width: 360 },
    { target: "body", top: 24, right: 24 }
  );
}

Example: Render a Small React Panel

async function showReactPanel() {
  await API.renderReactComponent(
    "react-status",
    (React) => React.createElement(
      "div",
      {
        style: {
          padding: "14px",
          borderRadius: "12px",
          background: "#111827",
          color: "#ffffff",
          boxShadow: "0 10px 30px rgba(0,0,0,0.25)"
        }
      },
      "Scene animation ready"
    ),
    { target: "body", right: 24, bottom: 24, width: 260 }
  );
}

Events and Lifecycle Hooks

Scripts can react to editor state, selection changes, and direct object interaction.

Project and Selection Events

projectLoaded(project) Called when a project finishes loading

projectActivated(project) Called when a project becomes active

ONLOADED() Called when the DOM and script environment are ready

projectSelected(project) Called when a project or subproject is selected

projectDeselected(project) Called when a project or subproject is deselected

sheetSelected(sheet) Called when a sheet becomes selected

sheetDeselected(sheet) Called when a sheet is deselected

connectorSelected(connectorData) Called when a connector is selected in the scene

Mouse Events on 3D Objects

ONENTER(object) Hover enter helper used in many project scripts

ONLEAVE(object) Hover leave helper used in many project scripts

MouseClick(object) Called when an object is clicked

MouseEnter(object) Called when the cursor enters an object

MouseLeave(object) Called when the cursor leaves an object

MouseMove(object) Called while the cursor moves over an object

MouseDown(object) Called when the mouse button is pressed on an object

MouseUp(object) Called when the mouse button is released on an object

Example: Highlight on Hover

const originalColors = new Map();

function MouseEnter(object) {
  if (!originalColors.has(object.uuid) && object.material?.color) {
    originalColors.set(object.uuid, object.material.color.getHex());
  }

  object.material?.color?.set?.("#ff6600");
  object.material?.emissive?.set?.("#221100");
  API.renderScene();
}

function MouseLeave(object) {
  const originalColor = originalColors.get(object.uuid);
  if (originalColor && object.material?.color) {
    object.material.color.setHex(originalColor);
  }

  object.material?.emissive?.set?.("#000000");
  API.renderScene();
}

Debugging

The runtime keeps a script-specific debug history and the latest captured script error so you can inspect failures without guessing.

console.log(), console.warn(), console.error() Write labeled messages into the script console

API.getScriptDebugHistory() Return recent structured debug entries

API.getLastScriptError() Return the last captured runtime error with location and excerpt

API.clearScriptDebugHistory() Reset the debug history and last error state

Example: Inspect the Last Failure

function inspectScriptState() {
  console.log("Debug history:", API.getScriptDebugHistory());
  console.log("Last script error:", API.getLastScriptError());
}

Best Practices

These patterns keep scripts predictable, fast, and easy to debug.

Use ActiveWorkbook only for data and geometry changes that really require a model rebuild.
Use API.updateSceneObject() and API.setAnimation() for smooth runtime motion instead of writing spreadsheet cells every frame.
Prefer stable scene targets: outputid first, then scene path, then object name.
Discover real robot names and joint names with API.listRobots() and API.getRobotJoints() before issuing robot commands.
For robot process moves, plan toolhead motion as approach, work, and retract poses.
Keep console.log() statements in early script drafts. They make debugging much easier.
Use the Scripts Editor Workflow tutorial if you want a screenshot-based walkthrough of the editor UI.

← Back to Documentation
