Power Transmission
Gear Examples

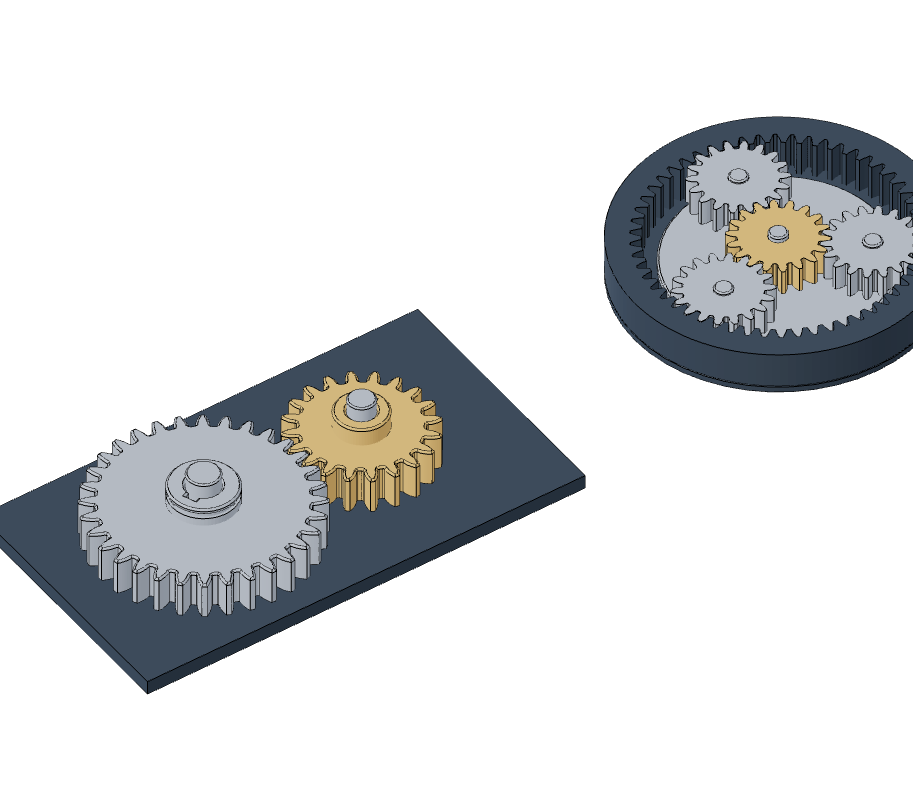

This assembly combines a planetary gear stage and a spur gear stage to demonstrate mechanical power transmission.
About this configurator
This assembly combines a planetary gear stage and a spur gear stage to demonstrate mechanical power transmission.
Variable specifications include:
- Planetary Module: Size adjustments for the sun, planet, and ring gears.
- Spur Stage Module: Sizing for the mating spur pinion and wheel.
- Spur Face Width: The contact width of the spur gear teeth.
- Materials & Finishes: Surface finishes for steel shafts, brass components, and the protective outer housing.
Gear element examples: planetary stage (internal ring + sun + three planets with exact phases) and spur stage (hub, keyway, ring groove, chamfer) as parameterized child sheets.
Interactive 3D configurator for Gear Examples
Power Transmission as a reusable confBuild starting point
Browser-based workflow for variants, review, and export
Typical Uses
- Use it as a starting point for a configurable model variant.
- Share the browser model with a team, customer, or supplier for visual review.
- Prepare machine layouts, brackets, interfaces, or moving assemblies faster.
- Copy it into your own confBuild project and extend parameters, rules, or outputs.
