Drill Press Assembly

About this configurator

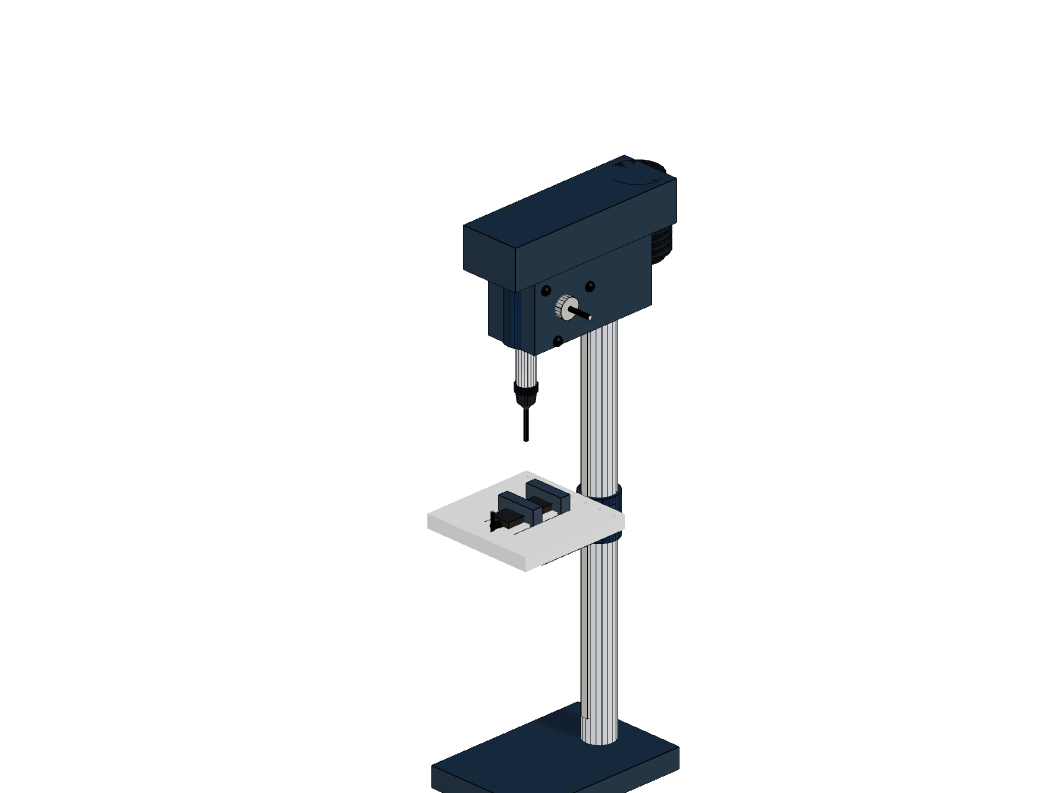

Drill Press Assembly Visualize and interact with a fully working drill press assembly.

• Overall Height: Modify the total height of the drill press between 1200mm and 2000mm.
• Table Height: Set the vertical position of the work table from 200mm to 1000mm.
• Drill Stroke: Adjust the drilling depth, ranging from 0mm to 120mm.

Personalize the look of your drill press:

• Machine Color: Select your preferred color for the machine body.

Key components of the assembly include:

• Base and column providing structural support
• Rack and table to support and hold the workpiece
• Drill head with motor, pulley cover, and spindle mount
• Drill and chuck with quill to hold the drilling bit
• A vise to clamp the workpiece
