Engineer Turbofan Engine CAD Model

About this configurator

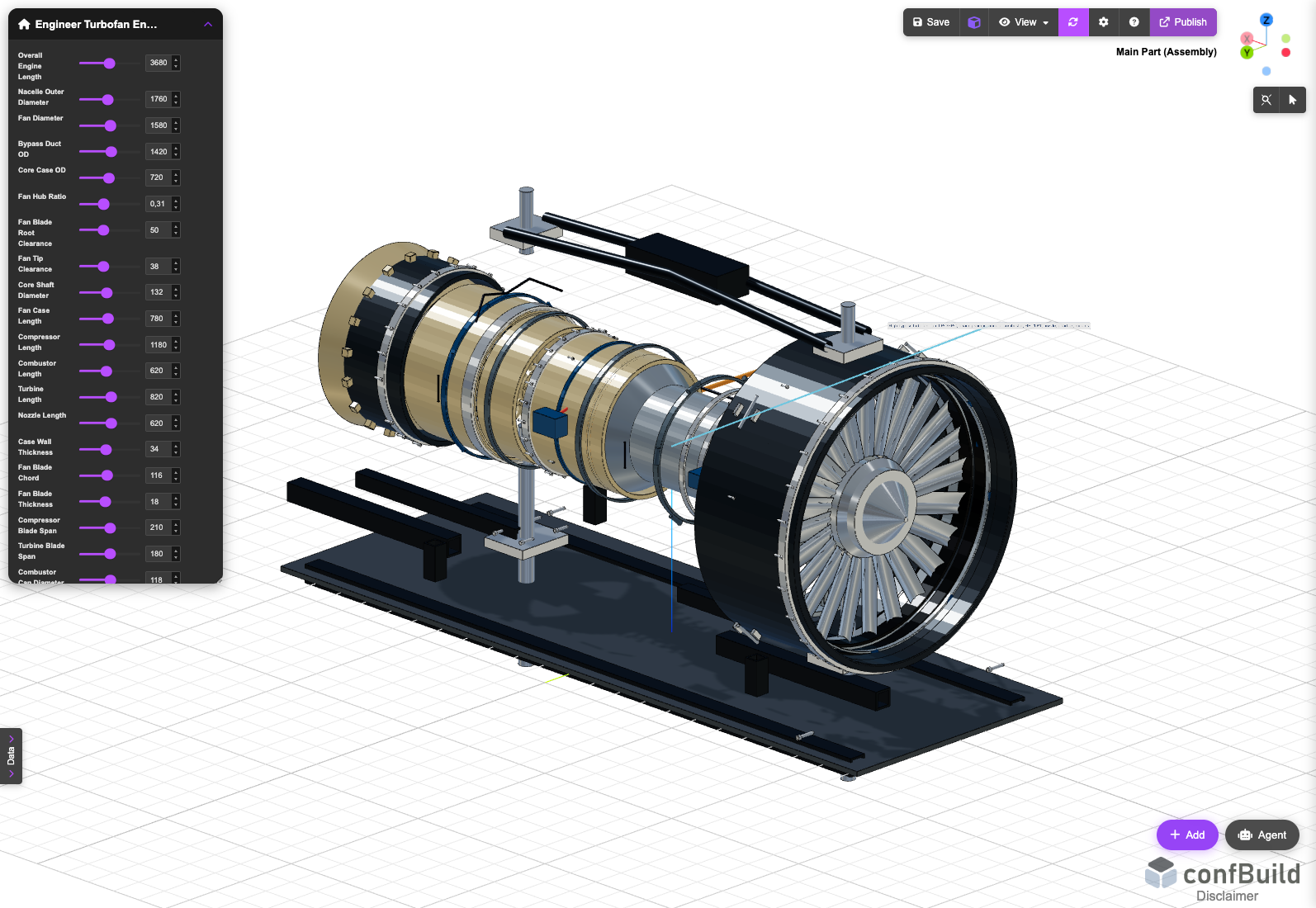

Detailed engineer-grade high-bypass turbofan engine CAD model with NURBS fan blade airfoils, inlet acoustic/anti-ice details, clevis-mounted thrust-reverser blocker/cascade hardware, dual-ring compressor variable-stator tie rods with rod-end clevis pins, combustor cooling/dilution details, turbine EGT/cooling hardware, accessory gearbox, stand, routed services, and DIN hardware

Deterministic high-bypass turbofan engine with NURBS fan blade airfoils, acoustic liner and anti-ice inlet details, clevis-mounted thrust-reverser hardware, dual-ring compressor variable-stator linkage with rod-end clevis pins, combustor cooling/dilution details, turbine EGT/cooling hardware, routed services, stand, and native DIN hardware.
