Pedestrian Metal Bridge
Metal Bridge Composite

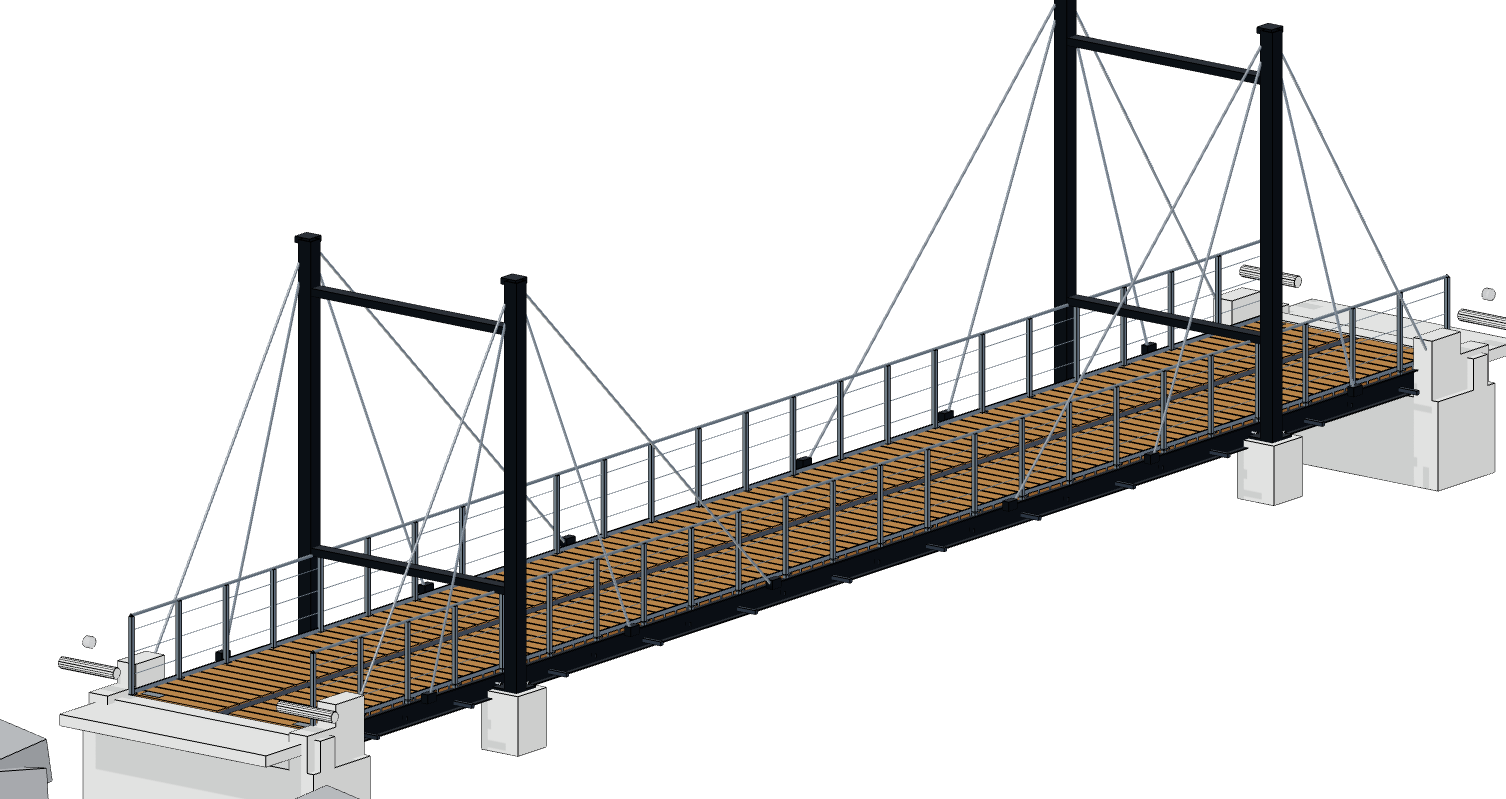

The Metal Bridge Composite is a structural cable-stayed pedestrian footbridge featuring concrete abutments, steel pylons, and a wood deck.
About this configurator
The Metal Bridge Composite is a structural cable-stayed pedestrian footbridge featuring concrete abutments, steel pylons, and a wood deck.
This system allows you to adapt the bridge design to your specific crossing requirements:
- Span & Walkway Dimensions: Set the overall bridge span between 16 and 32 meters, and customize the walkway width.
- Pylon Height: Adjust the vertical pylon supports to define cable suspension geometry.
- Railing Layout: Control safety railing post spacing and intervals.
- Material Finishes: Select specific colors and textures for the powder-coated steel, timber deck planks, suspension cables, and concrete foundations.
Configurable cable-stayed pedestrian metal bridge decomposed into foundations, pylons, superstructure girders, stay cable network, wood decking, and safety railings.
