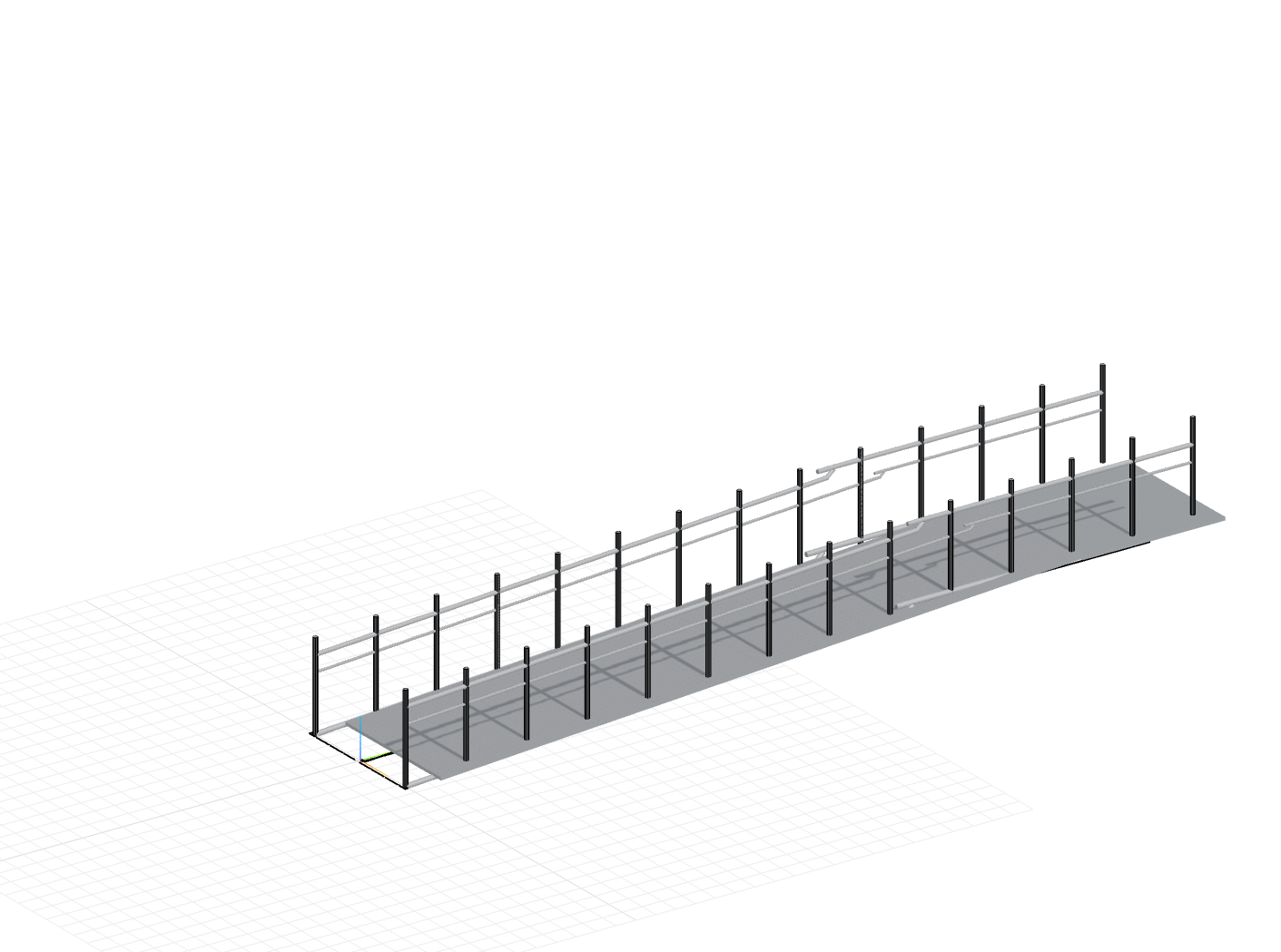

Metal Wheelchair Ramp

About this configurator

Metal Wheelchair Ramp Design your custom metal wheelchair ramp to perfectly fit your needs. Create a safe and reliable access solution with our easy-to-use tool.

• Ramp Length: Specify the desired length of the ramp in millimeters (mm), ranging from 3000 mm to 12000 mm.
• Ramp Width: Select the appropriate width of the ramp in millimeters (mm), ranging from 1000 mm to 2500 mm.

Adjust the ramp’s characteristics:

• Slope: Define the slope of the ramp as a percentage (%), ranging from 2% to 10%.
• Platform Length (top): Determine the length of the platform at the top of the ramp in millimeters (mm), ranging from 1200 mm to 2400 mm.

Customize safety and support features:

• Handrail Height: Set the height of the handrails in millimeters (mm), ranging from 800 mm to 1000 mm.
• Guard Height (post height): Specify the height of the guard posts in millimeters (mm), ranging from 900 mm to 1200 mm.

Fine-tune construction details:

• Deck Thickness: Choose the thickness of the ramp’s deck in millimeters (mm), ranging from 20 mm to 80 mm.
• Posts per side (count): Specify the number of support posts on each side of the ramp, ranging from 10 to 20.
• Hole Diameter: Select the diameter of the holes in the perforated deck in millimeters (mm), ranging from 6 mm to 20 mm.
• Hole Spacing: Define the spacing between the holes in the perforated deck in millimeters (mm), ranging from 20 mm to 80 mm.

Select a material to match existing structures:

• Metal material: Choose the color of the metal used for the ramp’s construction.
