Alloy Wheel Tire Assembly

About this configurator

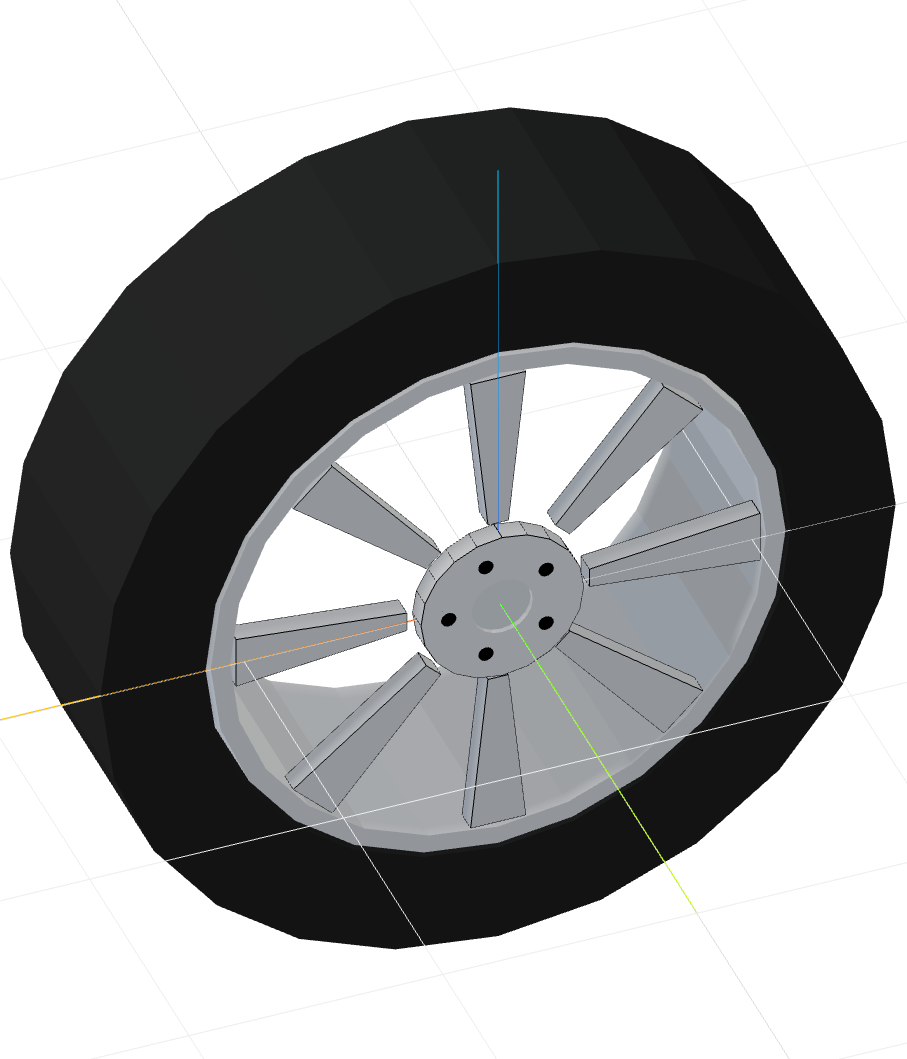

Alloy Wheel Tire Assembly Explore the possibilities of your own unique Alloy Wheel Tire Assembly. With this tool, you can adjust various parameters to design the perfect wheel for your vehicle.

• Tire Diameter (outer): Modify the outer diameter of the tire, ranging from 400 mm to 900 mm.
• Tire Width (axial): Determine the tire’s axial width, with options from 120 mm to 365 mm.
• Rim Diameter (outer): Establish the outer diameter of the rim, within a range of 300 mm to 700 mm.
• Rim Width (axial): Set the rim’s axial width, from 100 mm to 350 mm.

Fine-tune the wheel’s details for a customized look and performance.

• Number of Spokes: Select the desired number of spokes, between 3 and 12.
• Bolt Circle Number: Define the number of bolt holes on the bolt circle, choose between 3 and 10.
• Bolt Circle Diameter (PCD): Determine the diameter of the bolt circle, with a range of 80 mm to 140 mm.
• Bolt Hole Radius: Adjust the radius of the bolt holes, from 4 mm to 9 mm.
• Hub Bore Radius: Modify the hub bore radius, ranging from 20 mm to 45 mm.

Further define the wheel’s appearance with precise adjustments.

• Spoke Width at Hub: Set the width of the spokes at the hub, from 10 mm to 40 mm.
• Spoke Width at Rim: Determine the width of the spokes at the rim, with options from 15 mm to 60 mm.
• Rim Edge Thickness (radial): Adjust the radial thickness of the rim edge, between 5 mm and 30 mm.
• Rim Bed Thickness (radial): Modify the radial thickness of the rim bed, within a range of 5 mm to 20 mm.
• Dish Depth: Define the dish depth of the wheel, from 0 mm to 80 mm.
• Center Cap Radius: Set the radius of the center caps, ranging from 10 mm to 50 mm.
• Rim Edge Depth (axial): Determine the axial depth of the rim edge, with options from 5 mm to 20 mm.
• Hub Radius: Adjust the radius of the hub, from 50 mm to 120 mm.
• Hub Thickness (axial): Modify the axial thickness of the hub, between 8 mm and 25 mm.
• Spoke Thickness (axial): Define the axial thickness of the spokes, from 8 mm to 25 mm.
